Solar Control V2 Wifi
90,00 € excluding VAT
The purpose of the LSP-SC2-WIFI controller is to control a solar collector system consisting of a solar collector and a hot water storage tank. By comparing the collector and tank temperatures, the device controls the pump and assures the user that the system is operating safely and efficiently. The controller is configured using our smartphone or a laptop with which we connect to the device via WiFi.
The purpose of our Solar Control V2 Wifi LSP-SC2-WIFI controller is to control the operation of a solar collector system. It also ensures that it works optimally and efficiently. Safe operation was also a consideration during the design, so you don’t have to worry about overheating or freezing either.
One of its great advantages, as its name suggests, is that it has Wi-Fi connectivity. You can use your smartphone to configure the controller, which allows you to adapt it even more to your own needs and system. This feature allows it to send an email notification to the user if the controller detects an error. This can be useful when you are away from your system.
Solar Control V2 Wifi comes ready for use from the factory. The installation is simple, by following the manual, but it is recommended to ask the help of an electrician for installation.
What does the solar controller do?
Our solar system pump controller has two temperature sensors input. There are Pt1000 probes. One of them measures the temperature of solar collector, while the other goes to domestic hot water storage tank. When the difference between these two sensors is the same as the set value, the controller starts the circulator pump between the solar collector and the water tank. It has one voltage output to switch the pump, so on the output appears the voltage supply. The controller is supplied by the grid from 150V to 240V AC.
Features
• Configuration via WiFi
• E-mail notification
• Anti-freezing function
• Vacation mode
• Sound alarm
• Temperature displaying
• Sensor fail alarm
• Wall mountable case
• Manual control
• Pump saver function
How does the solar controller work?
accessories included

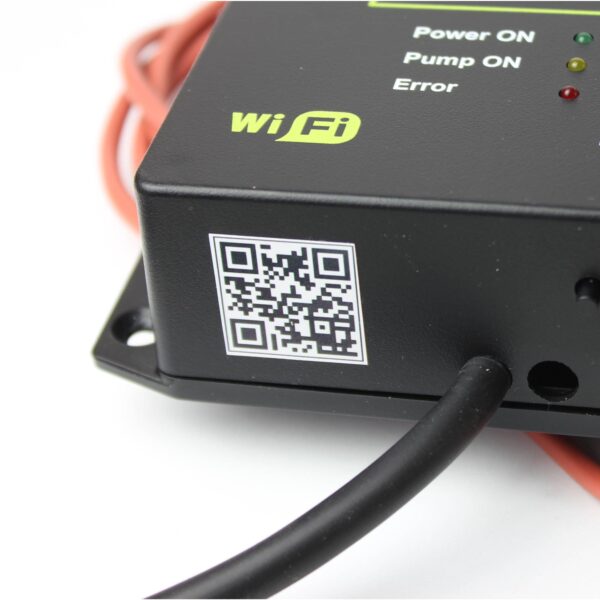

Easy configuration and easy access by scanning the QR codE
Configure it using your phone
email notification
Sound alarm
Using instructions
| Weight | 185 g |
|---|---|
| Dimensions | 147 × 96 × 38 mm |
| Supply voltage | 150 to 240 VAC at 50Hz |
| Consumption | 1W |
| Display | 3 digit 7 segment display |
| Operating temperature | -20 °C to 60 °C |
| Output Voltage | 150 to 240 VAC at 50Hz (Same as the supply) |
| Sensor inputs | PT1000 |
| Measuring range | -50 °C to 180 °C |
| Temperature control accuracy | +/-0.5 °C |
| WiFi configurable | Yes |
